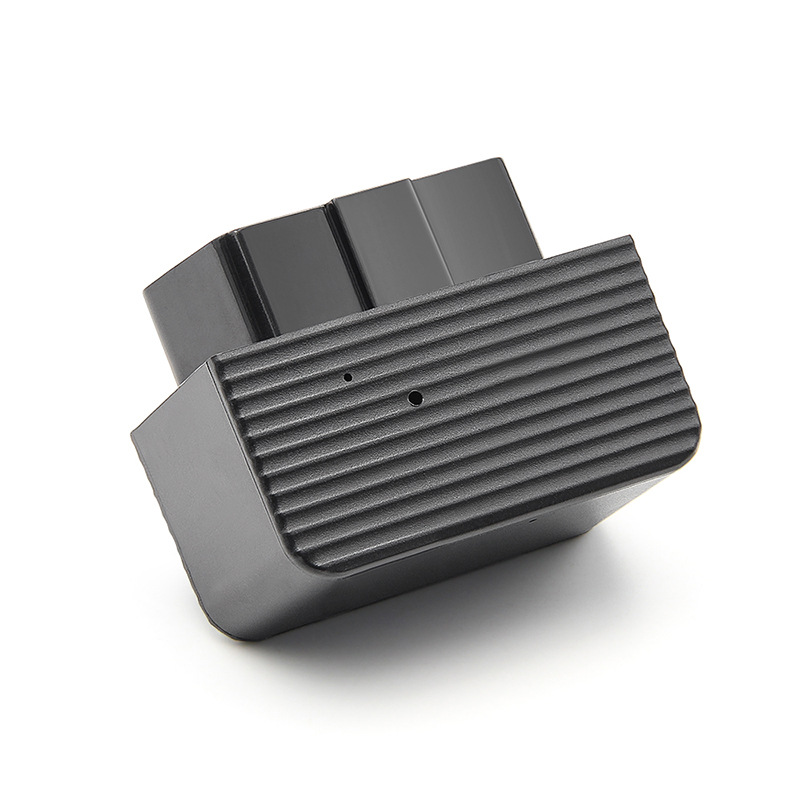

4G All Netcom device code reader OBD II GPS Location tracker with diagnostic function scanner C1
Product Parameters
|
GPS parameters |
GSM and general parameters |
Other parameters |
|||
|
Module chip |
UIS8910 |
Support network |
4G/3G/2G |
Size |
48*25*58mm |
|
GPS positioning |
5~10meters |
Platform and APP monitoring |
Support |
Weight |
45g |
|
Reception sensitivity |
1575.42MHz |
Fuel consumption analysis |
Support |
Adaptive voltage |
DC 8V-18V |
|
Capture sensitivity |
-144dBm |
Unusual alarm |
Support |
ESD test |
Contact 8KV |
|
Warm start |
1s |
Maintenance reminder |
Support |
Working current |
60mA |
|
Cold start |
36s |
Built-in sensor |
3-axis sensor |
Sleep current |
5mA |
|
SIM card slot |
NANO card |
Car VIN code |
Support |
Air discharge |
10KV |
Product Functions
-
01
4G Netcome
The C1 vehicle diagnostic instrument use UIS8910 module chip, supports TDD-LTE and FDD-LTE, it is more stable and reliable than other ordinary chip design devices.
-
02
Plug and play OBD
C1 vehicle instrument supports line-free installation supports all models of the car which produced after 2008. All OBD interfaces adopt unified standars, plug is convenient and fast.
-
03
APN adaptibe
C1 OBD2 locator uses a modular chip, insert the SIM card, automatically search the local network, automatically identify APN information and connect, support manual SMS settings.
-
04
Compatible more than 95% cars
C1 OBD2 locator Supports nine major automotive agreenments such as sea, ios is compatible with more than 95% of mainstream car brands and protocols produced after 2008.
-
05
Ultra-low power consumption
Vehicle diagnostic instrument adopts a modular chip, continuously optimizes various algorithms to achieve a power consumption about 50mA at work, sleep current is only 2mA.
-
06
Blind spot re-upload
Built-in 16MB large storage, can be still used normally in blind areas and GPS position. Reconnect the network, the data is re-uploaded to the GPS vehicle monitoring platform server.
-
07
Multi-precision postitiong
Support the four global positiong systems of GPS, Beidou, Glonass and Galileo, which can easily achieve global coverage and accurate positioning at the level of 5~10 meters.
-
08
Historical trajectory playback
The historical data will be fully stored at the back of the GPS vehicle monitoring platform server for more than 3 months. Can choose play back at any time to view the historical route.
-
09
Electronic fence entry exit alarm
Set different functions and uses in the GPS. Once vehicle enters and exits the electronic fence,alarm will be triggered. OBD2 uploads the alram to cloud server and issues an alarm.
-
10
Engine health monitoring
Detect engine systems, including emission systems, power charging systems, idle systems, cooling systems, fault systems,etc., to provide the most timely protection.
-
11
Battery voltage detection
Voltage too low or too high to the threshold, OBD2 will report the battery voltage too low or too high to the GPS vehicle monitor background and vehicle position app and issue alarm.
-
12
Read dashboard data
For models that do not support the protocol, a built-in algorithm is used to calculate the simulation data, and the accuracy of fuel consumption, mileage and so on can reach 99%.
-
13
RPM speed
C1 OBD2 supports reading car RPM data, obtaining accuracy data and uploading GPS vehicle monitoring background and vehicle positioning app for display.
-
14
Intelligent wake-up algorithm
Device supports multiple wake modes such as RTC wake-up, electric wake-up, trailer wake-up, dial-up wake up and SMS wake-up, optimize the traditional RTC wake-up uploaded every 6.
-
15
OBDII real-time data dashboard
C1 supports displaying all real-time data that can be obtained from car ECU in the vehicle management background and app dashboards, including airflow, mileage, engine speed, etc.
-
16
Coolant temperature monitoring
Temperature too high or too low to the threshold, C1 OBD2 diagnostic instrument reads and uploads to GPS vehicle monitor background vehicle to remind drivers and managers.
-
17
Emission system monitoring
C1 supports read of automobile exhaust emission CO and CO2, effectively monitor whether harmful substance emissions meet the standards to contribute to the global warm monitor.
-
18
Mileage analysis
C1 OBD2 code reader can read the total mileage, also support read and analyz the percentage of speeding, medium speed mileage and low speed mileage, etc,with an accuracy of 99%.
-
19
Fuel consumption analysis
C1 GPS locator supports read and analyz the percentage of total fuel consumption, high-speed mileage, and idle mileage fuel consumption, ect,with accuracy rate up to 99%.
-
20
Driving behavior analysis
C1 vehicle diagnostic instrument supports driving behavior analysis, including accurate monitoring of driving behavior such as rapid acceleration,sharp turn, fatigue driving, etc.
-
21
Itinerary report analysis
At the end of each trip, equipment upload the itinerary report to the background of vehicle monitor, such as start location mileage, fuel consumption, speed percentage, drive behaviour.
-
22
Support 23 kinds of alarm
Vehicle alarm is collected and uploaded in time, support more than a dozen alarms such as speeding, repid deceleration, repid lane change, emergency refuel, long-term idle speed, ect.
-
23
Failure code reading and removal
C1 detector supports 9 major automotive protocols, which can read and remove more than 3,000 automotive engine failure codes from mainstream car brands produced after 2008.
-
24
Fatigue driving
The C1 OBD2 locator will send fatigue driving report to the GPS vehicle monitoring background and the vehicle positioning app to ensure the safety of every driver and family.
-
25
Collision alarm
C1 equipment will comprehensively judge whether a collision event has occured and give collison warning tips by monitoring vehicle data, driving data and G-sensor data.
-
26
Trailer reminder
If the car is not ignited, and OBD2 detects that the vehicle is driving at a speed of 13km/h for more than 5 minutes, it is judged to be an illegal trailer, promoting alarm information.
-
27
Maintenance reminder
The OBD2 locator will automatically detect the car and send vehicle health status report and maintenance time to the vehicle positiong management and the driver app terminal.
-
28
Support OAT remote upgrade
C1 supports remote OTA upgrade, The car will be automatically upgraded after completing the trip, and can be upgraded silently without unplugging the device.
-
29
Multi-vehicle monitor management
Each products has a unique IMEI/ID indetification number before leav the factory, can manage multiple devices at the same time, one account can also manage multiple vehicles.
-
30
More functions
For more functions and the latest specifications, please contact us. Jason.huang@huatenglobal.com
