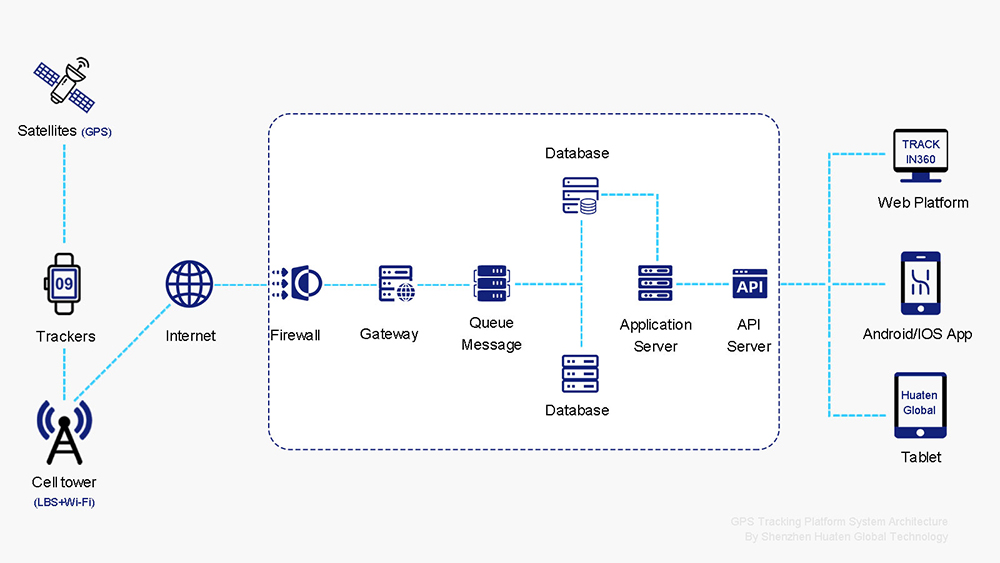

The above diagram illustrates the comprehensive, cloud-based tracking GPS system architecture of the Free GPS Tracking Platform TRACKIN360. This architecture demonstrates a robust, scalable, and secure pipeline for collecting, processing, and disseminating real-time location and telemetry data from connected GPS tracking devices to end-users.
The tracking system can be broken down into four primary layers: the Data Source Layer, the Data Transmission & Ingestion Layer, the Cloud Processing & Storage Layer, and the Client Application Layer.
This layer encompasses all hardware and external systems that generate raw data. Trackers and GPS devices obtain the satellites precise coordinates, and get auxiliary positioning data LBS and Wi-Fi data via cellular teiangulation and Wi-Fi hotspots to enhance accuracy indoors or in urban canyons where GPS signals are weak.
This layer facilitates the secure movement of data from devices to the cloud infrastructure. Internet serves as the universal conduit for data transmission.
This is the brain of the operation, hosted on scalable server infrastructure.
Firewall & Gateway: Critical security components. The Firewall protects the internal network from unauthorized access. The Gateway acts as the secure entry point, receiving and initially processing all incoming data streams from millions of devices before routing them internally.
Message Queue: A crucial middleware component for handling high-volume, real-time data. It reliably receives raw data packets from the Gateway, decouples the data ingestion from processing, and ensures no data is lost during traffic spikes, guaranteeing system stability and scalability.
Application Server: The core logic engine. It consumes data from the Message Queue, processes it according to business rules (e.g., checking geofence violations, calculating alerts, formatting information), and prepares it for storage and delivery.
Database: The centralized repository for all structured data. It stores historical location points, geofences, alert logs, user account information, device profiles, and health data, enabling fast retrieval for reports, playback, and analytics.
API: The platform's integration interface. A well-defined set of Application Programming Interfaces (APIs) allows the system's data and functionality (like live location or device commands) to be integrated into third-party enterprise systems (e.g., CRM, Fleet Management Software) or used for custom development.
This layer provides multiple interfaces for users to interact with the platform. The Web Platform primary management dashboard accessed for distributors and partners, it offers the full suite of features for administrators and operators. The Android and iOS tracking App provides mobile access to key monitoring functions, enabling end users to receive push notifications, view live locations, check statuses, and respond to alerts from anywhere.
The Hauten Global TRACKIN360 GPS Tracking System is engineered as a high-availability, enterprise-grade solution. Its tiered architecture ensures reliability (through queued message processing), scalability (via decoupled components that can be independently scaled), and security (with firewall protection and a secure gateway).
The platform seamlessly integrates diverse positioning technologies (GPS, LBS, Wi-Fi) to deliver continuous, accurate tracking. By processing data through a robust cloud backend, it transforms raw device signals into actionable intelligence, accessible instantly through web and mobile applications. The inclusion of a dedicated API layer underscores its commitment to being an open platform, ready for integration and customization to fit into complex business ecosystems for asset tracking, personal safety, and health monitoring scenarios.
This architecture is designed to support the demanding requirements of B2B clients, offering a stable foundation for both wholesale service deployment and tailored custom solutions.
As the technical foundation of our solutions, the TRACKIN360 tracking platform is built on a modern, modular software architecture. This design philosophy ensures scalability, reliability, and seamless integration, transforming raw device data into powerful tools for security, health monitoring, and operational intelligence.
The system is structured in distinct, interoperable layers:

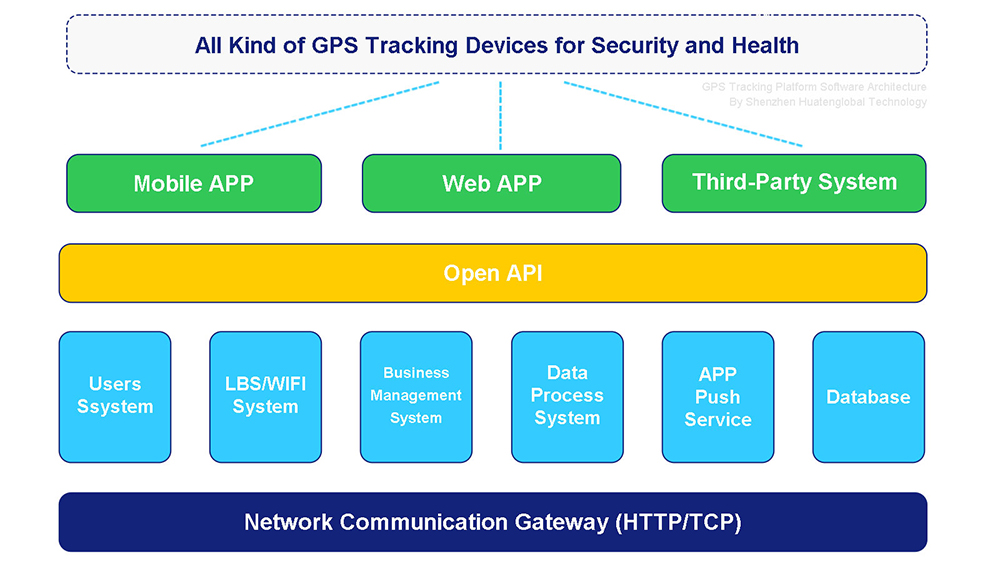

At its base, our Network Communication Gateway robustly handles protocols (HTTP/TCP) from all kinds of GPS tracking devices, ensuring secure and stable data uplink.
The heart of the platform comprises specialized, decoupled microservices:
Data Process System: Cleanses, enriches, and analyzes incoming data streams in real-time.
LBS/Wi-Fi System: Enhances GPS data with cell tower and Wi-Fi positioning for superior accuracy.
Business Management System: Executes core logic—geofencing, alert generation, and reporting.
Users System & Database: Manages secure authentication, permissions, and all data persistence.
APP Push Service: Enables instant, reliable notifications across platforms.
This is where we deliver value. A comprehensive Open API exposes our platform's full capabilities, allowing partners to build custom features or integrate data directly into their Third-Party Systems. Simultaneously, our polished Web APP and Mobile APP provide intuitive, ready-to-use interfaces for end-users and administrators.
This architecture is not an accident; it is a strategic choice. By decoupling services, we achieve unparalleled flexibility and resilience — each component can be updated, scaled, and maintained independently. The Open API is a cornerstone of our B2B model, enabling white-label solutions, custom integrations, and a rich partner ecosystem. Ultimately, this robust, future-proof foundation allows us to deliver a platform that is both powerful out-of-the-box and endlessly adaptable to our clients' evolving needs, solidifying our position as a technology leader in the IoT monitoring space.
