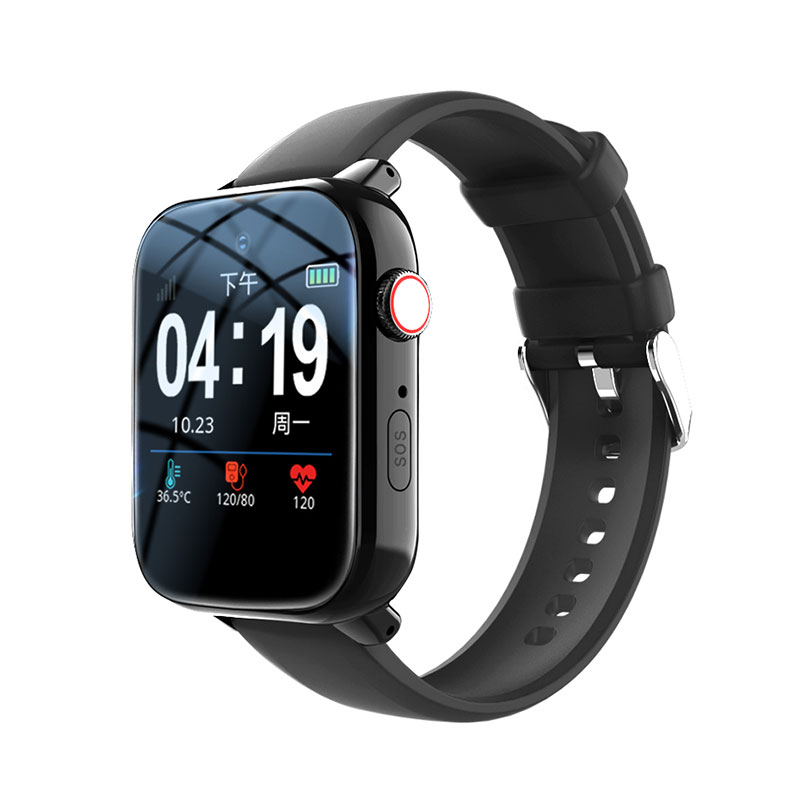

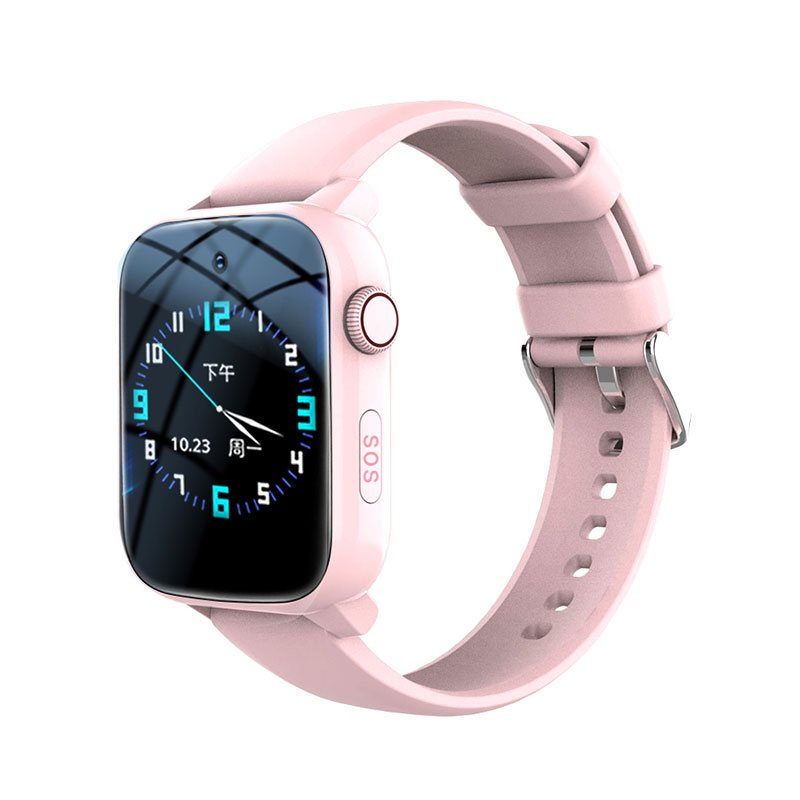

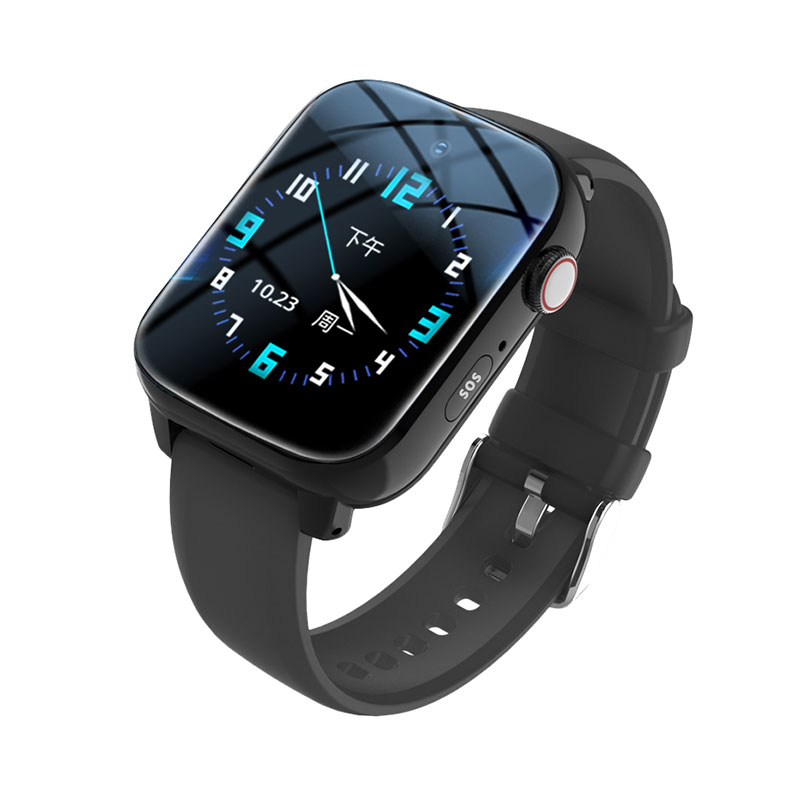

4G Big screen high-definition video call SOS one-key emergency calling IP67 waterproof healthcare wearable tracking smartwatch H17
Product Parameters
|
GPS/GSM Specifications |
Function Specifications |
Appearance Specifications |
|||
|
Chipset |
Spreadtrum SL8910 |
Historical track |
Support |
Size |
48*40*4.6mm |
|
Network |
4G/2G network |
Two-way talk |
Support |
Weight |
50g |
|
standby mode |
NANO card |
Video call |
Support |
Screen |
1.83" full-view HD screen |
|
Accuracy |
5~10 meters |
SOS call |
Support |
Battery |
850mah |
|
Screen resolution |
240*240 |
Voice monitoring |
Support |
Waterproof level |
IP67 |
|
Screen type |
IPS |
Electric fence |
Support |
Charger |
Magnetic charging |
|
Tracking accurate |
<10 meters |
Remote shutdown |
Support |
Strap |
Silicone food grade strap |
|
Temperature |
-20~70℃ |
SMS query |
Support |
Memory |
128BM+128BM |
Product Functions
-
01
4G/2G Network
With Spreadtrum SL8910 4G module chip is more stable and reliable. not only support 4G network but also back forward compatible global 2G network.
-
02
Food Grade Strap
H17 food grade skin-friendly strap, no harm to skin, gps tracking bracelet for elderly strap is snap on design, length adjustable and can also be replace leather strap or steel strap.
-
03
HD 1.83" Big Screen
Colorful 1.83-inch ISP full view high-definition large screen, support touch screen operation, it is 240*280pi, large fonts can be set, and the elderly with presbyopia can also see clearly.
-
04
IP67 Waterproof
H17 smart watch phone use waterproof rubber ring design, protects water damage of life scenarios such as hand washing, water splashing, raining and sports sweating.
-
05
Big Battery Capacity
H17 gps navigation watch adopts 5V/DC fast USB charging solution, built-in 850mAh high-capacity polymer lithium-ion battery, 3~5 days of standby time, and 2~3 days.
-
06
Big Memory Capacity
H17 anti lost tracking bracelet for the elderly built-in 128M large storage capacity, storing a large amount of data in an area without network signal, take photo and video.
-
07
Battery Low Alert
When battery capacity lower than 20%, the watch will send out vibration + message push alarm, also upload low battery alert to the gps tracking system and gps mobile tracker app.
-
08
GPS+LBS+WIFI Location
Support Beidou, GPS, WiFi, LBS multiple tracking methods, Beidou and GPS accuracy are 5~10 meters; LBS accuracy are 100~500 meters; indoor WiFi positioning way active.
-
09
History Playback
Historical data store in gps tracking system more than 6 months, easy to track the wearer history location and health data including: start/end point, duration, HR, BP, etc.
-
10
Blind GPS Re-upload
In without network area, the tracking bracelet for elderly GPS still working, all data will be saved in built-in memory, cache GPS locate data re-upload to gps tracking monitor system.
-
11
Electronic Fence Alarm
Set up electronic fences with different usages, when the H17 wearable tracking devices in or out will triggered alarm and will be uploaded to tool gps tracking system.
-
12
SOS Emergency Call
Switch on button is SOS button as well, press and hold 5 seconds to trigger the SOS call function in any emergency situation, take turns call 1 SOS number and 3 family numbers.
-
13
Two-way Calling
H17 gps watch for seniors support pre-set a whitelist in the global navigation and tracking system, wear people answer or reject and make calls anytime and anywhere.
-
14
Voice Monitoring
In emergency or necessary situations, release commands from gps tracking system and App, H17 wearable GPS tracker will quietly call back the preset center number.
-
15
Pedometer
H17 gps map watch supports release pedometer commends from gps tracker app and web, then gps tracking system and apps will record the pedometers data of this time period.
-
16
Medicine Reminder
Supports setting time to medicine alarm clock reminder, when the elderly forgets to take medicine, the H17 positioning watch will send a message and a vibration alarm.
-
17
Temperature Monitoring
Built-in high-sensitivity temperature sensor, contacting with skin around 30 seconds detect body temperature, upload to tracking system database, save historical data for 3 months.
-
18
Heart Rate Monitoring
Built-in high-sensitivity heart rate sensor, contacting with skin around 30 seconds detect body temperature, upload to tracking system database, save historical data for 3 months.
-
19
Blood Oxygen Monitoring
Built-in high-sensitivity blood oxygen sensor, contacting skin around 30 seconds detect body temperature, upload to tracking system database, save historical data for 3 months.
-
20
Anti-Take Off Alarm
The bracelet is taken off the then will send a alert to the gps tracking system and the APP to remind the family or management platform that the watch has fallen off.
-
21
Power Off Remotely
Support remote shutdown feature, send command from personal gps tracking system or global gps tracker app, and perform remote shutdown processing on the H17 gps watch.
-
22
Message Chat
Supports messages chatting between watches, and also supports text and voice message on the APP group, family members need to send any messages to the elderly wearer.
-
23
Weather Display
After H17 smartwatches is connected to local network, the local weather information can be updated synchronously, which is equally important for health and safety management.
-
24
Multi Languages
Both gps wristband and gps tracking platform/app support more than 20 languages including Chinese, English, Russian, Thai, Spanish, Vietnamese, German, and French.
-
25
Monitoring Platform & App
Our white label GPS monitoring system is available on web, iOS and Android, and can be used free of charge for life. Support group, location, report management, etc.
-
26
Certificates
Our factory has passed ISO9001 certification, strict production and assembly process to ensure high quality products, has CE and RoHS international certificates import and export.
-
27
More Features or Inquiry
Please contact with us to get more specification or have special requirement on OEM/ODM. Jason.huang@huatenglobal.com.
