4G LTE Non-Removable Tracking Bracelet for Dementia, Alzheimer and Prisoner Community Correction Bracelet GPS Tracker C05
Product Parameters
GPS/GSM Specifications |
Functions Specifications |
Appearance Specifications |
|||
Product |
Tamperproof wristband |
Strap disconnect alert |
Support |
Size |
55*41*17.5mm |
Main chips |
Spreadtrum SL8521E |
Heart rate |
Support |
Weight |
85g |
Network |
4G/3G/2G |
Temperature |
Support |
Screen |
Tempered glass |
Cold start |
30s |
Blood oxygen |
Support |
Battery |
700mAh+1200mAh |
Hot start |
2s |
Voice monitor |
Support |
Memory |
64MB+512MB |
Accuracy |
5~10 meters |
Photo sharing |
Support |
Waterproof |
IP68 Waterproof |
Antenna |
Built-in |
SOS and 2 ways calling |
Support |
Screen |
1.4” colorful screen |
Temperature |
-35℃+70℃ |
Pedometer |
Support |
Charge |
Magnetic charger |
Product Functions
-
01
4G Global Network
C05 non removable tracking bracelet with Unisoc SL8521E 4G module chip, supports 4G global network, extra antenna signal more stable and reliable than others.
-
02
Electronic Pulse Strap
The C5 non removable tracking bracelet for dementia patients adopts electronic pulse tamper proof adjustable TUP strap, if it is cut, an alarm will be generated immediately.
-
03
Aluminum Alloy Lock
The C05 non removable gps tracking bracelet lock is constructed of a single-piece mold and high-strength aluminum alloy, making it difficult to pry open without authorization.
-
04
Strong Touch Screen
C05 GPS Wristband 1.4 inches tempered glass capacitive colorful touch screen with a high-definition resolution of 240*240pi, high-strength force impact not easy damage.
-
05
IP68 Waterproof
As one of best IP68 waterproof non removable gps tracker bracelet, C05 with a fully enclosed waterproof rubber ring and design, seal up glue no need to take off in daily usage.
-
06
Long Standby Time

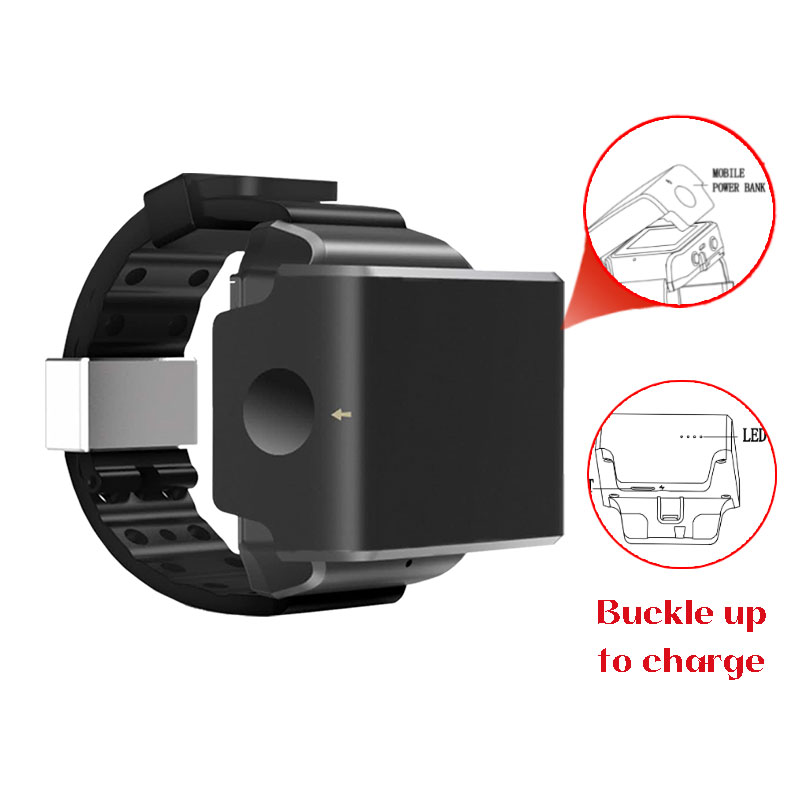

The C05 gps bracelet with wireless magnetic charging, built-in 700mAh high-capacity battery also equipped extra 1,200mAh power bank, for 5~7 days long standby time.
-
07
Big Memory Capacity
This gps monitoring ankle bracelet built-in big memory 64MB+512MB, able to store over 5,000 location points in some area without network coverage temporarily.
-
08
Multiple Positioning
The C05 gps monitoring ankle bracelet support Beidou, GPS, WiFi and LBS positioning methods, plus BLE connect capability meet outdoor and indoor location requirement.
-
09
History Track Playback
3 months historical safe and health data save in lifelong free gps tracking system available to playback probation and parole wearers trajectory and itinerary.
-
10
Blind Spot Re-upload
In without network place, the gps monitor ankle bracelet still working, all data saved in built-in memory, cache data re-upload to gps tracking security system once network reconnect.
-
11
Low Battery Alarm
When battery capacity lower than 20%, the C5 gps ankle bracelet sends vibration + message push on watch, also upload the low battery alarm to the gps tracking system.
-
12
Offline Alarm
If the tampering watch wearer fails to charge the battery in time while the battery level drops below 20%, resulting battery power exhausted, an offline alert will be triggered and report.
-
13
Lock up Alarm
An alarm will also be generated and report to dementia patients tracking system when the device is locked up, and the management system manager can be viewed in real time.
-
14

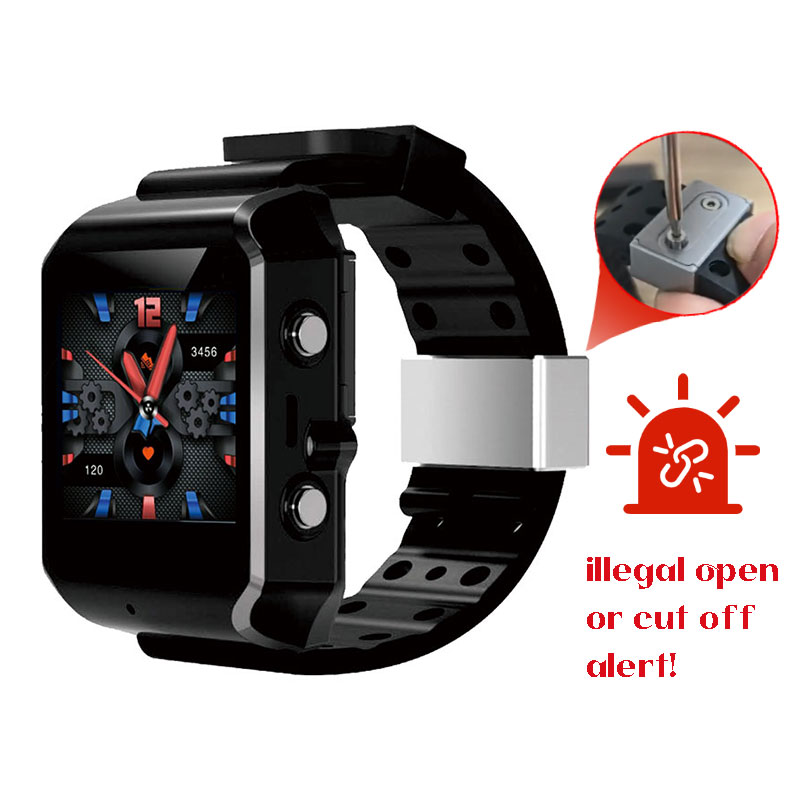

Tampering/Cut Off Alarm
When the non removable gps tracking bracelet C5 is artificially damaged, will prompt "illegal disconnect", generate a disconnect alert immediately, report to tracking system immediately.
-
15
Geo-fence Alarm
Set up electronic fences with different usages on offender gps monitoring systems, while the C5 ankle bracelet for probation enter or exit will trigger geo-fence alert to platform.
-
16
Key Area Entry/Exit Alarm
Once wearers like security guard, community correction people, mental patients, prisoners, etc. enter or exit the pre-set key area, an alarm will be triggered and reported.
-
17
SOS Emergency Call
Switch on button is SOS button as well, press and hold 5 seconds to trigger the SOS call function in any emergency situation, take turns call 3 SOS numbers until answer.
-
18
Two-way Calling
The C05 gps prisoner tracker support pre-set a whitelist in the global navigation and gps tracking system, answer or reject and dial number to call anytime and anywhere.
-
19
Voice Call-back Monitoring
In emergency or necessary situations, administrator send commands from gps tracking system, the C05 house arrest bracelet will call back the preset center number silently.
-
20
BLE Scanning (Customize)
The house arrest ankle bracelet C05 with Bluetooth 5.0, it can scan the surrounding BLE devices and beacons, achieve floor and indoor centimeter-level precise positioning.
-
21
G-Sensor
The C05 tamper proof gps bracelet tracking wristband with built-in G-sensor, multiple using on vibration, moving, pedometer, fall down, power save mode, etc.
-
22
Pedometer
As a gps tracking bracelet tamper proof watch, it not only supports real-time position tracking but also support pedometer distance monitoring for elderly people wearer.
-
23
Temperature Monitoring
The C05 tamper proof gps bracelet built-in temperature sensor, contacting with skin and start measuring, upload and save on server historical data for 3 months.
-
24
Heart Rate Monitoring
Built-in high-sensitivity heart rate sensor, contacting with skin around 30 seconds detecting body temperature, upload to tracking system database, save historical data for 3 months.
-
25
Blood Oxygen Monitor
Built-in high-sensitivity blood oxygen sensor, touching skin around 30 seconds detect body temperature, upload to tracking system database, save historical data for 3 months.
-
26
SMS and Message Push
C05 house arrest with ankle bracelet provide free gps tracking system include web portal Android and IOS apps, support admin text message to every single tamperproof gps watch.
-
27
Phone Book
Up to 10 phone book numbers can be set in the web-based tracking GPS systems. Once set, only numbers in the phone book can be dialed.
-
28
Roles Authorization
The default Admin account in the gps tracking system allows different roles to be authorized, with different rights and responsibilities, enabling more specialized management of different wearers.
-
29
Data Report Analysis
The gps tracking platform generates data reports for different time periods based on devices, users, and alarms for administrators to review and analyze.
-
30
Free Tracking System
The C05 house arrest bracelet tracking system supports safe tracking, group devices management, health monitoring, alert push, etc., our system accept customization.
-
31
Quality and Certificates
Strict produce and assembly process to ensure every single model high quality gps tracking watch for adults to pass CE and RoHS international import and export certification.
-
32
More Inquiry
Any question or inquiry please feel free to contact with us on Jason.huang@huatenglobal.com, welcome visit to discuss project OEM/ODM.
